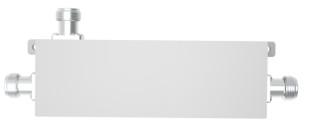

350-6000MHz N Female Directional Coupler For Wireless Communication Systems

Brand Name : Vinncom

Model Number : VN-DC-03560-ONx-XXX

Certification : ISO 9000 ROHS

Place of Origin : China

MOQ : 5 pcs

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T

Connector Type : N Female

Frequency Range : 350-6000MHz

Operating Temperature : -40°C~+80°C

VSWR : ≤1.30

Contact Now

350-6000MHz N Female Directional Coupler

  • Good returen loss
  • Good PIM up to -165@43dBm*2
  • Good VSWR

VN-DC-03860-ONx-160.pdf

Part Number VN-DC-03560-ONx-XXX
Operating Frequency ( MHz ) 350-6000MHz
Impedance ( Ohm ) 50
VSWR ≤1.30
Coupling (dB) 5 ± 2 6 ± 2 7 ± 2 10 ±2 15 ± 2.3 20 ± 2.3
Insertion Loss (dB) ≤3.00 ≤2.2 ≤1.7 ≤1.1 ≤0.8 ≤0.3
Isolation (dB)@MHz ≥20 ≥21 ≥22 ≥23 ≥30 ≥35
IM3 (dBc) @ 2×43dBm@xxx -150/-160/-163/-165
Application Indoor & Outdoor
Degree of Protection IP65
Operating Temperature ( ℃ ) -40 ~ + 80
Interface N Female
Handling Power 200 (Watt, max)
Peak Power 1200 (Watt, max)
Dimension (mm) 156.9× 44× 31
Net Weight (g) 590± 5%
Packing Dimensions (mm) 240 × 80 × 35
Packing Carton Size(mm) 420 × 250 × 160
ROHS Compliance Yes

350-6000MHz N Female Directional Coupler For Wireless Communication Systems350-6000MHz N Female Directional Coupler For Wireless Communication Systems
